BMS 1.3 Mp USB 2.0 CMOS Camera Set

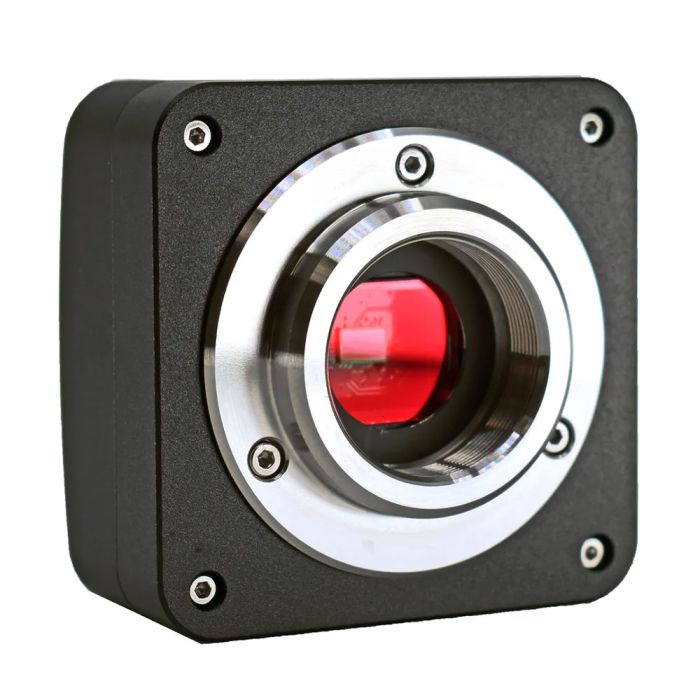

BMS 1.3MP USB 2.0 CMOS Camera Set

The 1.3MP digital camera provides a seamless upgrade for BMS microscopes. It enables sharp image capture, smooth video recording and real-time live streaming directly to computer systems. With USB 2.0 connectivity, data transfer is stable and reliable, ensuring reliable performance in daily use. The robust zinc alloy housing and integrated IR-CUT filter maintain consistent image quality and long-term durability, making this camera a trusted solution for professional applications.

The BMS USB camera instantly transforms any BMS microscope into a high-definition digital solution. Simply attach it using the included reduction lens and adapters and stream sharp live video to any USB-enabled device. Capture crisp still images and detailed analysis. Powered entirely through the USB connection, no extra cables or power sources are needed.

USB 2.0 provides dependable data transfer between the camera and any USB compatible device, including PCs, laptops and all-in-one computers. It delivers steady live video and quick image capture, making it ideal for classrooms, laboratories and everyday tasks. With consistent performance and smooth operation, it offers a trusted solution for professional use.

The 1.3 megapixel sensor captures over 1.3 million pixels, producing clear images that reveal important details. Ideal for teaching, labs and research, it allows reliable measurements, clear documentation and high-quality images for presentations or reports.

Kit Contents:

• BMS 1.3MP USB 2.0 CMOS Camera
• USB Flash Drive with Software
• Calibration Slide for accurate measurements
• Microscope adapter with optics
• Tube size adapter with 23.2mm → 30.0mm
• Tube size adapter with 23.2mm → 30.5mm

Key Features

• Resolution: 1280 × 1024 (1.3MP) captures detailed images of specimens, enabling students and researchers to observe structures and record findings.
• Sensor: Aptina CMOS provides bright, clear imaging for both classroom demonstrations and precise laboratory work.
• Sensor Size: Measuring 1/3" (4.60 × 3.70 mm), the sensor is optimized for microscopy, balancing field of view and image clarity.
• Pixel Size: 3.6 × 3.6 μm ensures sharp, well-defined images for high-quality observation and analysis.
• Recording System: Still Picture and Movie enables capturing high-quality images and videos for multifunctional documentation and analysis.
• G Responsivity: 1.0 V/lux-sec provides good sensitivity to light, producing bright and clear images under varied illumination.
• Dynamic Range / SNR: 71 dB / 44 dB delivers good contrast and low noise for accurate image capture.
• Frame Rate (FPS): 15 @ 1280×1024 / 50 @ 320×256 allows smooth live viewing for interactive lessons and fast laboratory processes.
• Exposure: Auto & manual, 0.14 ms ~ 2000 ms allows flexible brightness control for various lighting conditions.
• Power Supply: USB 2.0 provides a single-cable solution for power and stable data transfer.
• Supported OS: Microsoft® Windows® 11 and higher, macOS & Linux.Still compatible with Windows 7/8/10, but for best performance the latest update is recommended. The BMS_pix3 software is available as a full version for Windows and a light version for Linux and macOS.
