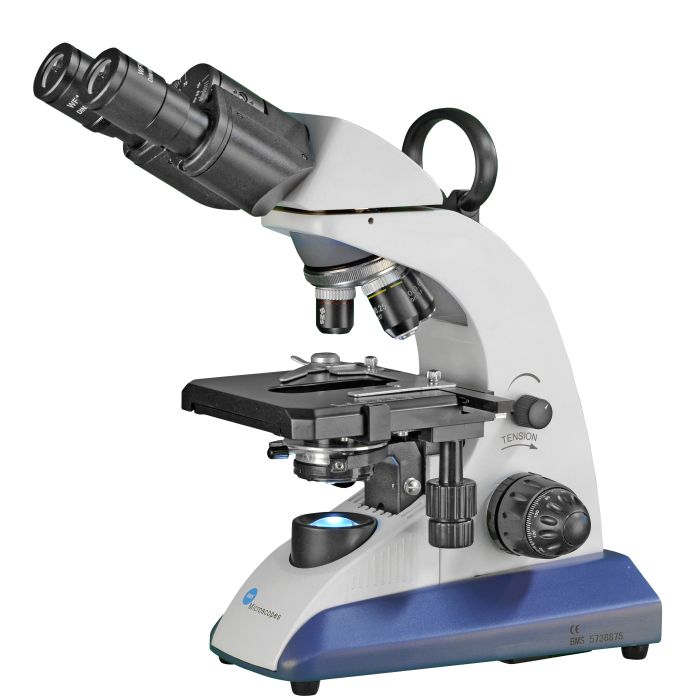

BMS 146 FLArQ Mono Microscope

The BMS 146 FLArQ is the first model of the Advanced Plus range with rack and pinion system for the condensor and integrated mechanical stage. It has the fine shape of the 146 with the reversed nosepiece. All the parts are locked to the microscope. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts.

The microscope offers standard 3 types of electrical use in one microscope:

1. 100~230 V connection through the included power cable
2. Recharges automatically while connected to electrical power.
3. Standard non-rechargeable batteries type AA 15V 3 pieces

 Technical specifications:

• Optical System: finite optical system 160 mm
• Eyepiece: WF10x/18 mm with a pointer locked
• Head: monocular 360º rotatable
• Tube: 45º inclined
• Antibacterial paint: yes
• Antifungus optics: yes
• Nosepiece: quadruple revolving nosepiece with click stops and reversed mounted
• Objectives: DIN achromatic 4x/0.10 10x/0.25 and 40x/0.65 (spring loaded)
• Focusing mechanism: dual coaxial coarse and fine focus controls
• Fine focus precision: 2 µm minimum increment
• Stage: built-in mechanical stage 130 x 125 mm with coaxial controls. XY adjustment through ergonomically arranged knobs.
• Stage limit stop: preset and adjustable
• Condenser: rack and pinion Abbe condenser N.A. 1.25 with iris diaphragm adjustable in height
• Illumination: new generation High Power LED. Light intensity stepless adjustable through a rotary potentiometer.
• Lifespan LED:  approx. 50.000 hours
• Magnification: 40x 100x and 400x. Optional extendable up to 1500x
• Power: 100~230 V/50 Hz
• Double electrical safety: full separation from the main power through DPDT* switch.
• With indicator LED on the back to show if main power is switched on and if the optional battery is charged
• Multipower use: yes (main power cable rechargeable batteries non-rechargeable batteries)
• Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
• Detachable IEC power cord: C13 connector (connecting to the microscope) to Schuko (available for EU UK CH and USA)
• Including: dust cover and manual
• Lenght x Width x Height: 175 x 133 x 358 mm
• Warranty: 5 years
• Weight: 31 kg
