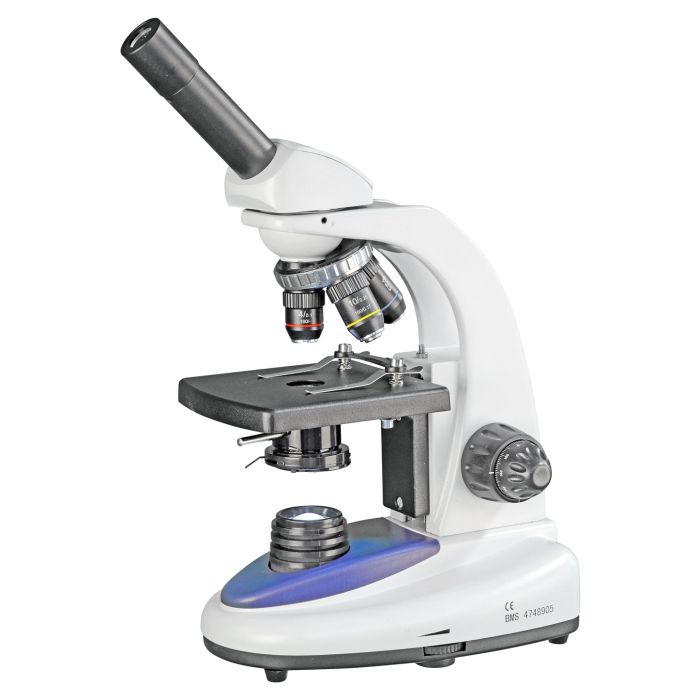

BMS 146 FLAsQ LED Microscope - 230V

The BMS 146 FLAsQ microscope offers students a more advanced option for their microscopy journey. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts. It has a reversed nosepiece to enhance ergonomics, lens safety and user experience.

These microscopes can be used with mains power, or batteries can be used to enable mobile use:

 100~230 V connection through the included power cable

Rechargeable AA batteries x3 - charge automatically while connected to the electrical power (not included): B8R02103

Standard non-rechargeable AA batteries x3 - remove before connecting to mains power (not included): B8R05078

 Technical specifications:

• Optical System: finite optical system, 160 mm
• Eyepiece: WF 10x/18 mm with a pointer, locked
• Head: monocular, 360º rotatable
• Tube: 45º inclined
• Antibacterial paint: yes
• Antifungus optics: yes
• Nosepiece: quadruple revolving nosepiece with click stops and reversed mounted
• Objectives: DIN achromatic 4x/0.10, 10x/0.25 and 40x/0.65 (spring loaded)
• Focusing mechanism: dual coaxial coarse and fine focus controls
• Fine focus precision: 2 µm minimum increment
• Stage: 120 x 120 mm metal plan stage with 2 stage clips and one finger touch lift
• Stage limit stop: preset and adjustable
• Condenser: Spiral condensor with a long adjustment lever, N.A. 1.25 with built-in iris diaphragm and filter holder
• Illumination: new generation High Power LED. Light intensity stepless adjustable through a rotary potentiometer.
• Lifespan LED:  approx. 50.000 hours
• Magnification: 40x, 100x and 400x. Optional extendable up to 1500x
• Power: 100~230 V/50 Hz
• Double electrical safety: full separation from the main power through DPDT* switch.
• With indicator LED on the back to show if main power is switched on and if the optional battery is charged
• Multipower use: yes (main power cable, rechargeable batteries, non-rechargeable batteries)
• Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
• Detachable IEC power cord: C13 connector (connecting to the microscope) to Schuko (available for EU, UK, CH and USA)
• Including: dust cover and manual
• Length x Width x Height: 175 x 133 x 358 mm
• Warranty: 5 years
• Weight: 3.1 kg

 *DPDT (double pole, double throw) when switched off, the power is completely shut off.
