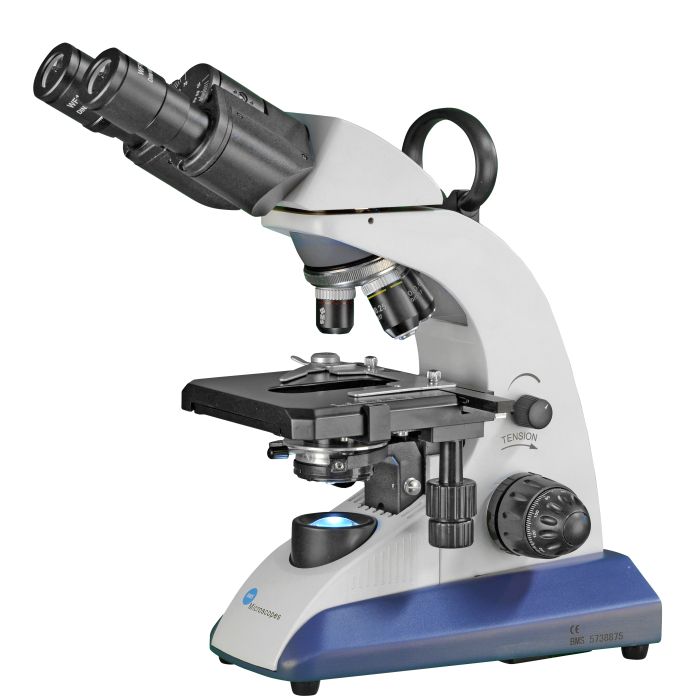

BMS EduLed FLArQ Bino Microscope

Microscope BMS EduLed FLArQ binoThe BMS EduLed microscope is a high quality robust and well equipped microscope ideal for school study and hobby purposes. Rechargeable batteries enable the BMS EduLed to function also as a portable field microscope.

The transmitted light illumination of BMS EduLed FLArQ is performed by a LED with dimmer (for continuous variation of light intensity) and a height-adjustable Abbe condenser with iris diaphragm. This allows the instrument to have not only the usual 4x 10x and 40x objective but also the 100x oil immersion objective. These all are DIN achromatic Semi Plan objectives. With the 10x wide field eyepieces you get a total magnification range of 40x-400x (optional 600x and/or 1000x). The optical ingredients provide sharp clear and true-colour images with high-contrast. The microscope has a 360º rotatable binocular viewing head coaxial coarse and fine focusing drive and a mechanical stage which has ergonomic arranged coaxial controls for easy handling.

All the parts are locked to the microscope. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts.The microscope offers standard 3 types of electrical use in one microscope:

1. 100~230V connection through the included power cable
2. Recharges automatically while connected to the electrical power.
3. Standard non-rechargeable batteries type AA 15 V 3 pieces

Technical specifications:

• Optical System: finite optical system 160 mm
• Eyepieces: extra large 2 x WF 10x/18 mm (one with pointer)
• Head: binocular 360º rotatable
• Tube: 30º inclined
• Antibacterial paint: yes
• Antifungus optics: yes
• Nosepiece: quadruple revolving nosepiece with click stops and reversed mounted
• Objectives: DIN achromatic Semi Plan 4x/0.10 10x/0.25 and 40x/0.65 (spring loaded)
• Focusing mechanism: dual coaxial coarse and fine focus controls
• Fine focus precision: 2 µm minimum increment
• Stage: metal plan built-in mechanical stage 135 x 140 mm with ergonomic arranged coaxial controls
• Stage limit stop: preset and adjustable
• Condenser: rack and pinion Abbe condenser N.A. 1.25 with iris diaphragm adjustable in height
• Illumination: new generation High Power LED. Light intensity stepless adjustable through a rotary potentiometer.
• Lifespan LED:  approx. 50.000 hours
• Magnification: 40x 100x and 400x. Optional extendable up to 1000x
• Integrated handle for easy transport
• Power: 100~230 V/50 Hz
• Double electrical safety: full separation from the main power through DPDT* switch.
• With indicator LED on the back to show if main power is switched on and if the optional battery is charged
• Multipower use: yes (main power cable rechargeable batteries non-rechargeable batteries)
• Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
• Detachable IEC power cord: C13 connector (connecting to the microscope) to Schuko (available for EU UK CH and USA)
• Including: dust cover tension wrench and Allen key (for battery compartment) and manual
• Lenght x Width x Height: 175 x 133 x 358 mm
• Warranty: 5 years
• Weight: 35 kg

*DPDT (double pole double throw) when switched off the power is completely shut off.
