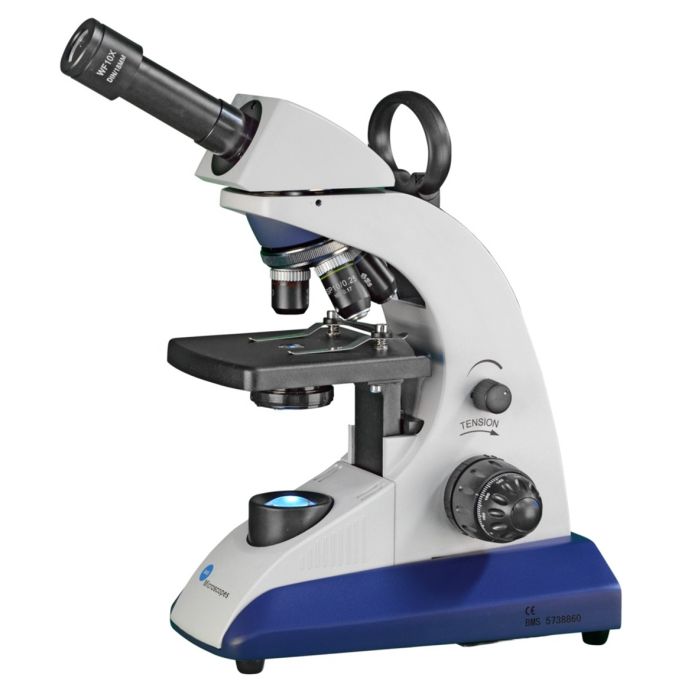

BMS Eduled FLQ Mono Microscope

The BMS EduLed microscope is a high quality, robust and well-equipped microscope

The transmitted light illumination of BMS EduLed FLQ is performed by a LED with dimmer (for continuous variation of light intensity) and a fixed condenser with iris diaphragm. The BMS EduLed microscope is equipped with three DIN achromatic Semi Plan objectives (4x, 10x and 40x). With the 10x wide field eyepiece you get a total magnification range of 40x-400x. The optical ingredients provide sharp, clear and true-colour images with high-contrast. The microscope has a 360º rotatable monocular viewing, coaxial coarse and fine focusing drive and a stage with two stage clips.

All the parts are locked to the microscope. The microscope has antibacterial paint on the metal parts and antifungus coating on the optical (glass) parts.

These microscopes can be used with mains power, or batteries can be used to enable mobile use:

100~230 V connection through the included power cable

Rechargeable AA batteries x3 - charge automatically while connected to the electrical power (not included): B8R02103

Standard non-rechargeable AA batteries x3 - remove before connecting to mains power (not included): B8R05078

Technical specifications:

• Optical System: finite optical system, 160 mm
• Eyepiece: extra large WF 10x/18 mm with a pointer, locked
• Head: monocular, 360º rotatable
• Tube: 30º inclined
• Antibacterial paint: yes
• Antifungus optics: yes
• Nosepiece: quadruple revolving nosepiece with click stops and reversed mounted
• Objectives: DIN achromatic Semi Plan 4x/0.10, 10x/0.25 and 40x/0.65 (spring loaded)
• Focusing mechanism: dual coaxial coarse and fine focus controls
• Fine focus precision: 2 µm minimum increment
• Stage: 110 x 120 mm metal plan stage with 2 stage clips and one finger touch lift
• Stage limit stop: preset and adjustable
• Condenser: fixed, N.A. 0.65 with built-in iris diaphragm and filter holder
• Illumination: new generation High Power LED. Light intensity stepless adjustable through a rotary potentiometer.
• Lifespan LED:  approx. 50.000 hours
• Magnification: 40x, 100x and 400x. Optional extendable up to 1000x
• Integrated handle for easy transport
• Power: 100~230 V/50 Hz
• Double electrical safety: full separation from the main power through DPDT* switch.
• With indicator LED on the back to show if main power is switched on and if the optional battery is charged
• Multipower use: yes (main power cable, and optional rechargeable batteries, non-rechargeable batteries)
• Cordless use: 3 hours charging time and 10 hours cordless working time (with optional rechargeable batteries)
• Detachable IEC power cord: C13 connector (connecting to the microscope) to Schuko (available for EU, UK, CH and USA)
• Includes dust cover, tension wrench and Allen key (for battery compartment) and manual
• Length x Width x Height: 175 x 133 x 358 mm
• Warranty: 5 years
• Weight: 3.5 kg

*DPDT (double pole, double throw) when switched off, the power is completely shut off.
