Bourdon Gauge

This is used for the measurement of actual (total gaseous) pressure.

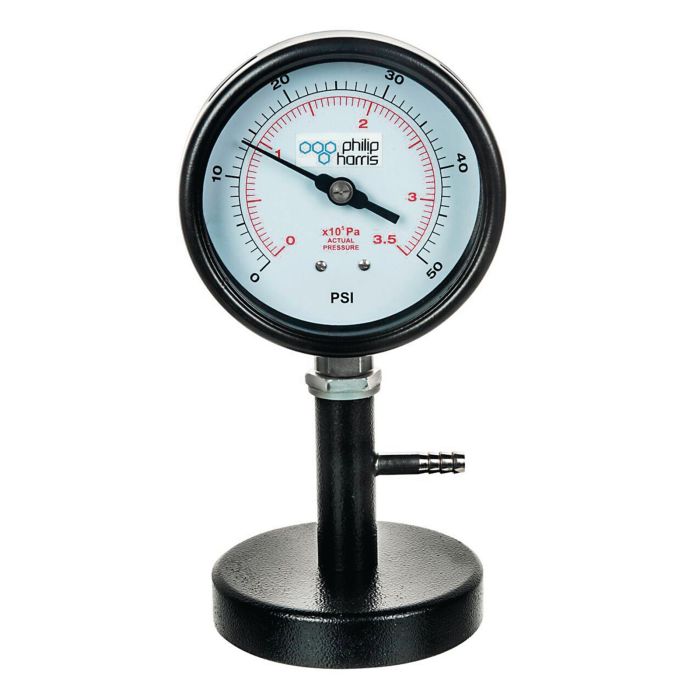

Circular gauge

Overall diameter: 106mm, depth 40mm.

The dial reads 0 to 3.4 x 105 Pa actual (total) pressure

The case has a clear Perspex back so that the working parts may be seen.

A tubule, 8mm diameter, provides connection to the system under investigation.

The gauge is mounted on a heavy base 102 x 102 x 25mm, with rubber feet.

Overall height: 220mm.
