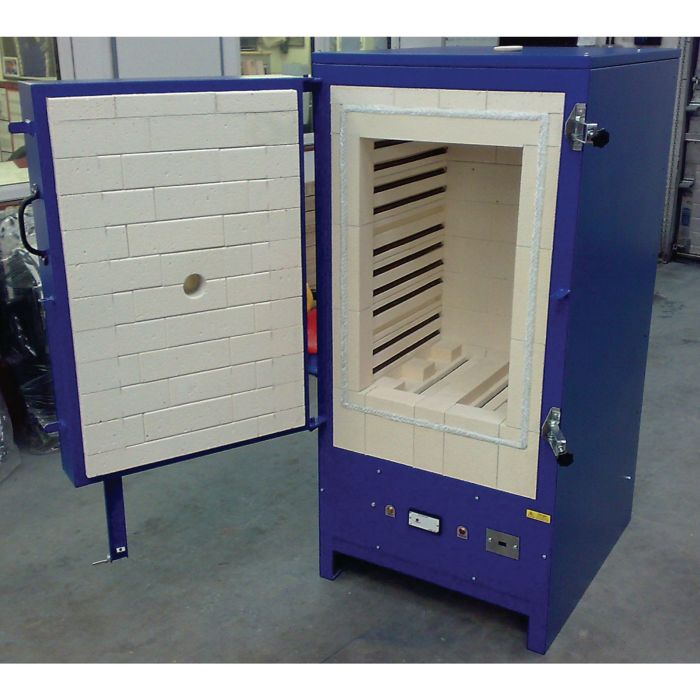

CFL200 Front Loading Kiln

This 200 litre front loading kiln can be equipped for single phase or three phase power and comes complete with programmable controller and furniture set. Capacity- 200 litres, 7 cubic ft. Chamber dimensions (cm) - 46 x 58 x 75h. External size (cm)- 78w x 100d x 170h. Power supply (1/3 phase)- 12kw, 230V 60A 415V 20A & N.

Front loading kilns come complete with the following features:

• Captive Key Safety Interlock

• Provision for padlock on door to prevent unauthorised opening of the firing chamber.

• Heat Fuse and Over Temperature Security relay.

• 3300 Microprocessor control providing for 10 user definable programs each with multiple segments and suitable for Ceramics and Glass firing

• Kanthal A1 spiral elements for long life and even firing

• Replaceable door seal

3300 Program Controller fitted to Front Loading Kiln Standard features:

• 10 Program Controller with Delay

• 4 Ramps and 4 Dwells

• Ideally suited for firing ceramics in a school, studio or commercial environment
