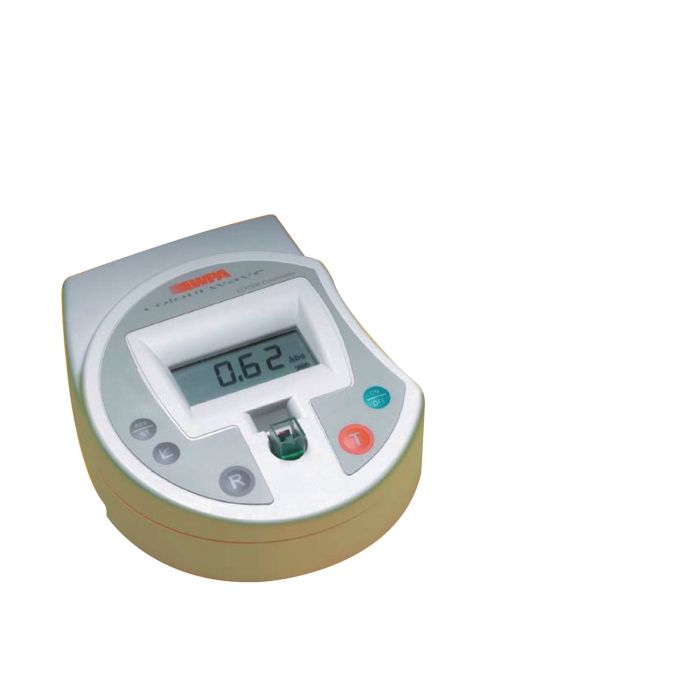

Colourwave Colorimeter

This colorimeter is designed with student users in mind. Highly compact and robust, the choice of absorbance or percentage transmission read out allows explanation of the fundamentals of colorimetry. The integral Kinetics mode permits the study of rates of reaction and results can be output to PC, chart recorder or printer. The eight filters are held in an integral filter wheel preventing any accidental loss or damage, however they can be removed if required.

• Range: Absorbance -0.3A to 1.99A, Transmission 0 to 199%T

• Filters: Eight gelatin filters 440 - 680nm range

• Bandwidth: 40nm

• Repeatability: ±0.02A at 1A

• Output: Analogue 0-2V for 0-2A, 0-1.99V for 0-199T. Via 2 x 4mm sockets & Digital RS232

• Cuvette holder: Fixed with drain hole. Accepts 10mm path length cuvettes or 16mm diameter tubes. (Accepts 10 and 12mm tubes with adaptors)

• Power: 240V transformer supplied

• Dimensions: 180 x 150 x 60mm

• Mass: 0.5kg
