Hand-Operated Pump

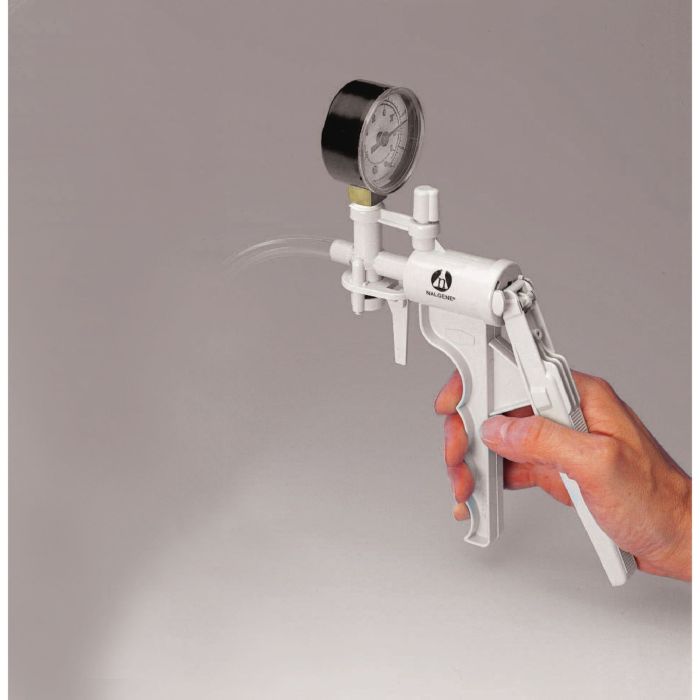

This hand operated pump will establish, and hold, a vacuum with a few quick squeezes of the hand lever. The pump is made of high impact styrene mouldings and is self-lubricating, corrosion resistant and maintenance free. The pump nozzle accepts 6mm internal diameter. tubing and is equipped with a vacuum gauge and a discharge valve.

• Pumping rate: 15cm3 per stroke

• Maximum vacuum: 120 torr

• Mass: 210g

• Maximum pressure: 50kNm-2

• Outlet and inlet: accepts 6mm internal diameter tubing

• Supplied with 0.5m 6mm vinyl tubing
