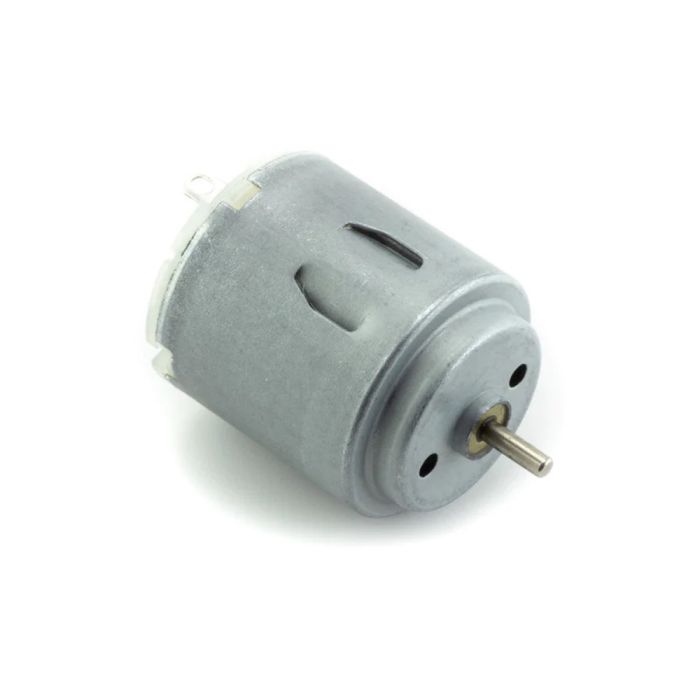

Medium Torque DC Miniature Motor

Web Code: EL361
AED 11.00
AED 10.48 Excl. VAT
A low-cost miniature motor for a higher stall torque than EL281.

Applications including models, robotics and educational demonstration equipment. Changing the polarity will run the motor in the opposite direction.

Operating voltage: 1.5 to 4.5V dc.
Rated voltage: 1.5Vdc.
No load speed: 6600rpm.
Load current: 0.13A.
Weight: 28g.
Torque: 11.6g/cm.
Shaft diameter: 2mm.
Dimensions: 27 x 20 x 20mm (L x W x D).
Web Price AED 11.00
Web Code EL361
Alternative Codes EL361, EL282, 281521
Catalogue Page Number 811
Pack Size Each
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
