Non-Mercury Tilt Switch

Web Code: EL271
AED 18.00
AED 17.14 Excl. VAT

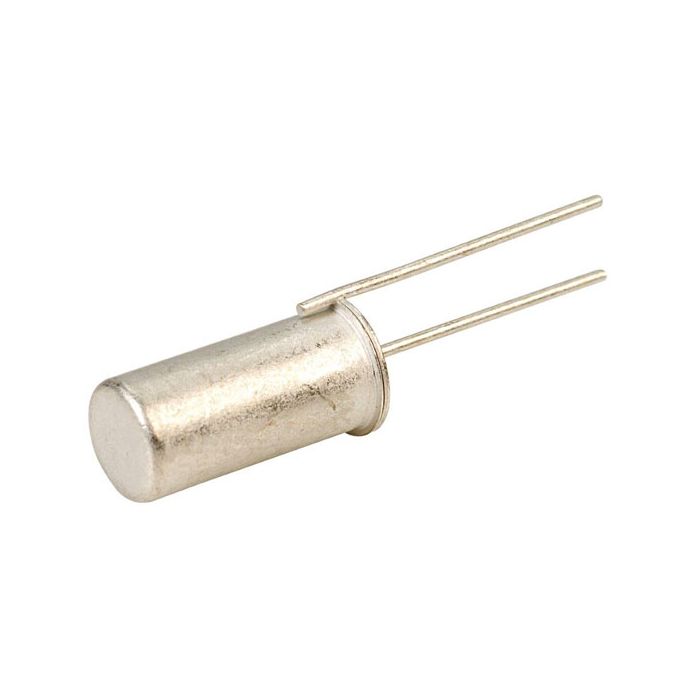

Non-Mercury hermetically sealed tilt switch. Open contacts will close when tilted more than 10° from the horizontal. 60V ac switching voltage, 0.25A switching current, 3VA switching capacity. 5.94mm body diameter. Overall length 22mm.

Use for a wide range of applications such as toys, games and automotive.
Web Price AED 18.00
Web Code EL271
Alternative Codes EL271, 281513
Catalogue Page Number 820
Pack Size Each
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
