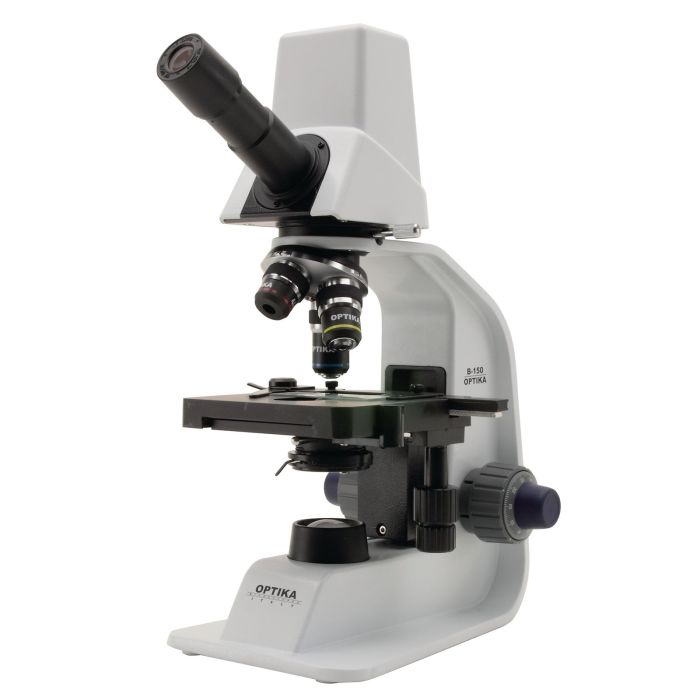

Optika B-150DMR Digital Monocular Microscope 400x

A fully functioning compound microscope with additional digital imaging capabilities. A brilliant, robust instrument that is suitable for experienced users who want to document their investigations. Use the digital camera for taking great shots that will supplement any report that will capture the essence of the work.

Microscope Specification:

• Total magnification: 40x, 100x, 400x

• Eyepiece: Wide Field 10x/18mm

• Head: Monocular digital observation head, 360° rotating, with 45° inclined eyepiece tube

• Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings

• Objectives: Anti-fungal treated achromatic DIN

? 4x A.N. 0.10, W.D. 18mm

? 10x A.N. 0.25, W.D. 7mm

? 40x A.N. 0.65, W.D. 0.53mm

• Stage: : Double layer with mechanical sliding stage with specimen holder, 125 x 116mm. X-Y movement range 76 x 30mm. Vernier scale on the two axes, accuracy 0.1mm

• Focussing: Coaxial coarse and fine focusing mechanism (graduated 0.002mm) with upper stop. Adjustable tension of coarse focussing knob

• Condenser: Abbe condenser, N.A. 1.2 pre-centred

• Illumination: 1W LED with adjustable intensity

• LED Details: 1W, 6300K colour temperature, average lifetime approx. 50000h

• Dimensions: H350 x W170 x D210mm

• Weight: 4kg

• Voltage: External power supply 100/240V, 50/60Hz, output 6V D.C. 2.5A. Internal NiMH rechargeable battery (up to 15 hours of use from a single charge, LED at medium intensity)

• Accessories included: Power supply, OPTIKA Vision Lite software disc, 1.8m USB cable, dust cover and instructions

Digital Camera Specification:

• Resolution: 1280 x 1024 pixels, 5:4 aspect ratio

• Pixel size: 2.8μm x 2.8μm

• Sensor: 1/3.2"CMOS

• Output: USB 2.0 port

• Framerate: 15fps (1280 x 1024) or 30 fps (640 x 480)

• S/N Ratio: 42.3dB

• Dynamic Pro Range: 71dB

• Exposure Time: 20s - 1/1000s

• Effective Digits: 10bit - on chip

• Sensitivity: 1.0 V/lux-sec (550nm)

• Software: OPTIKA Vision Lite for Windows XP, Vista, 7, 8 (32/64bit)
