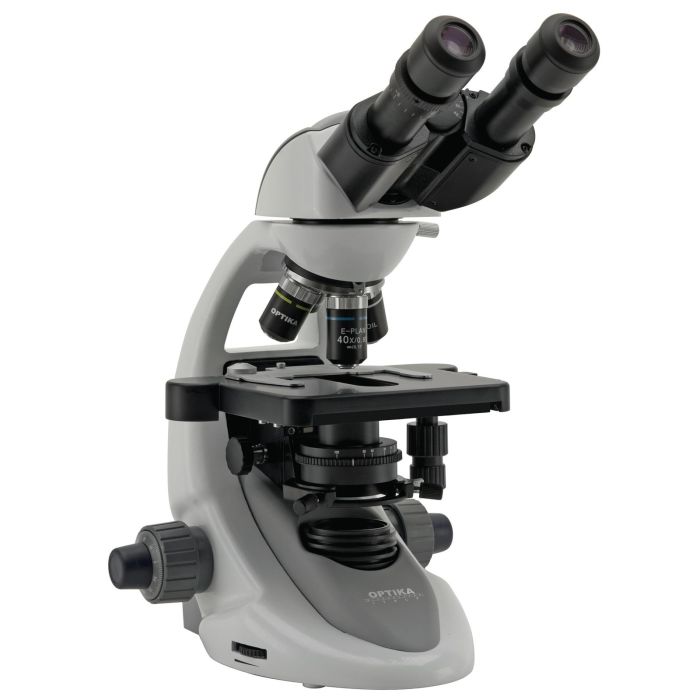

Optika B-292PLi Binocular Microscope LED 1000x

This instrument is great for routine applications. Dye-cast frame, with high stability and ergonomic design for transmitted light observation.

Full Specification:

• Total magnification: 40x, 100x, 400x, 1000x

• Eyepieces: Wide field WF10x/20

• Head: Binocular, 360° rotating, with 30° inclined eyepiece tube. Diopter adjustment on left eyepiece Interpupillary adjustment 48-75mm

• Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings

• Objectives: Anti-fungal treated infinity-corrected E-Plan objectives

? 4x, A.N. 0.10, W.D. 18mm

? 10x, A.N. 0.25, W.D. 7mm

? 40x, A.N. 0.65, W.D. 0.53mm

? 100x, A.N. 1.25, W.D. 0.13mm (oil immersion)

• Stage: Double layer with mechanical sliding stage with specimen holder, 150 x 1133mm. X-Y movement range 75 x 50mm. Belt drive in X direction. Vernier scale on the two axes, accuracy 0.1mm

• Focussing: Coaxial coarse and fine focusing mechanism (graduated 0.002mm) with upper stop. Adjustable tension of coarse focussing knob

• Condenser: Abbe condenser, N.A. 1.25, sliding-in, centre-able, up-down adjustment by rack and pinion.

• Illumination: 3.6W X-LED with adjustable intensity

• LED Details: 3.6W (comparable to a 30-35W halogen bulb), 6300K colour temperature, average life time approx. 50000h

• Observation Mode: Brightfield

• Dimensions: H370 x W235 x D290mm

• Weight: 6.5kg

• Voltage: External power supply 100/240V, 50/60Hz, output 6V D.C. 1A. Max. required power 7W

• Accessories included: Power supply, dust cover and instructions
