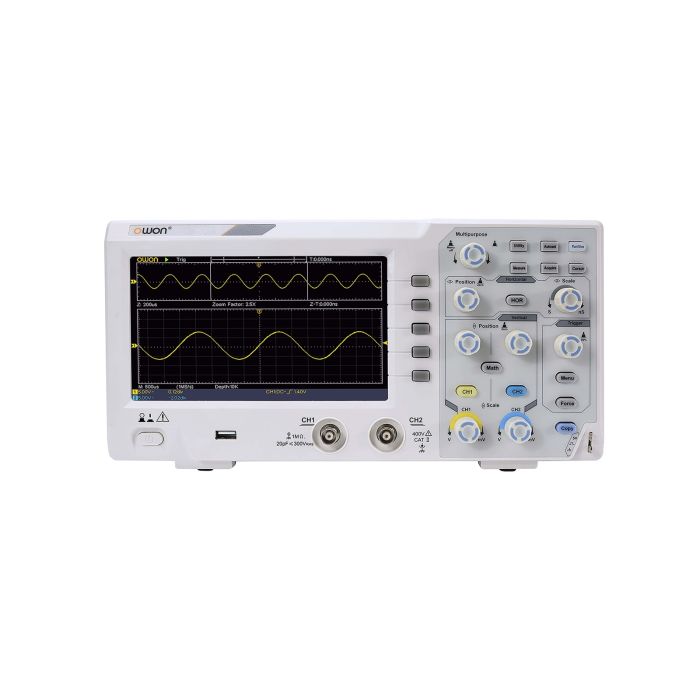

Owon Digital Oscilloscope - SDS1022

The SDS1022 digital oscilloscope offers reliable measurement technology for a really good price.

Ideal for the workshop, hobbys or educational use.

The 7 "colour TFT LCD panel with a resolution of 800 x 480 allows excellent readability of the waveforms

It offers a 20 MHz bandwidth, a sampling rate of 100 MSa/s in dual channel and a memory depth of 10 K.

Supports SCPI and LabVIEW communications protocols.

Includes a USB port for connection to PC and as a host to connect a USB drive.

Supplied with 2 probes, USB cable, PC software, power cable and user manual.

Specification

Bandwidth: 20MHz

Sampling: 100MS / s

Display: 7 '' colour TFT display 800x480 pixels

Memory: 10 K

Maximum voltage: 400V (peak)

Time base: 5 nS / Div at 100 s / Div

Voltage difference And time difference between cursors

Vpp, Vmax, Vmin, Vtop, Vamp, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A? B Rising Edge, Delay A? B Falling Edge, + Width, -Width, + Duty, -Duty

Interfaces: USB PC Connection, USB Host for pendrives

Dimensions: 301 x 152 x 70 mm

Weight: 1.10 kg

Shipping Weight 1.6 kg
