Philip Harris Simple Respirometer

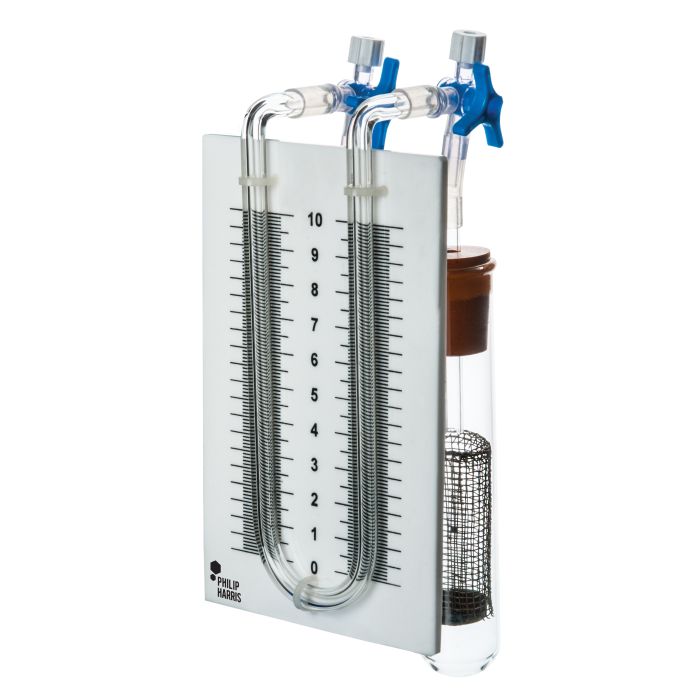

Simple Respirometer for comparing the rates of absorption or evolution of gases by small organisms, during respiration. The apparatus consists of two stoppered boiling tubes connected by three-way taps to either limb of a graduated manometer.

One tube holds the organisms and has a syringe connector for altering the level of liquid in the manometer during setting up.

The other tube acts as a control thermobarometer. The Carbon Dioxide given off by the respiring organisms is absorbed by Potassium Hydroxide in the experimental chamber resulting in a change in the level of liquid in the manometer tube.

• Complete with wire baskets for supporting organisms.
• Capillary Tube Diameter - 0.8mm (approx.)

Potassium Hydroxide is sold separately: B8F78599
