Planar Diode

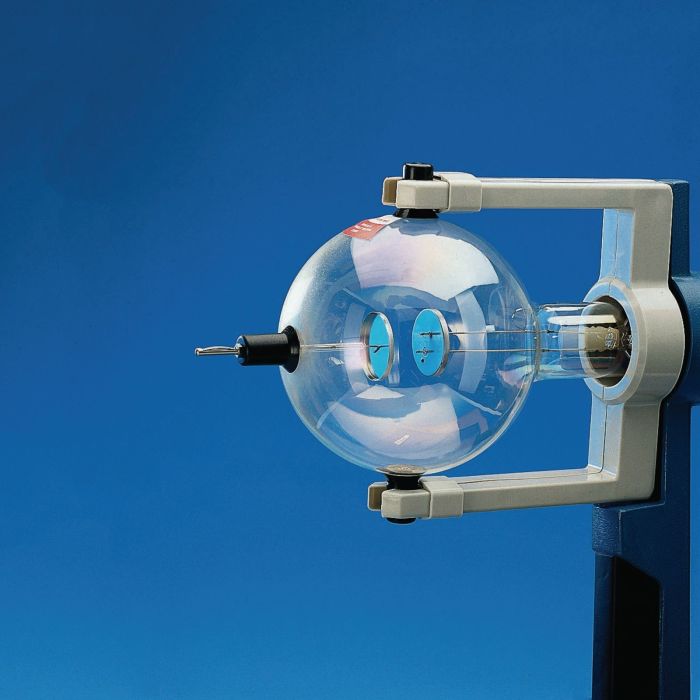

High-vacuum electron tube with thermionic cathode for demonstrating the thermoelectric effect (Edison effect). Use the tube to investigate the relationship between measured emission current and the voltage applied to the cathode. Also investigate the characteristics of diodes via the process of rectification.

Specifications

Max. heater voltage: 7.5 V AC/DC

Max. anode voltage: 500 V

Anode current: 2.5mA at 300V
