Rheostat Standard Range - 1.4A

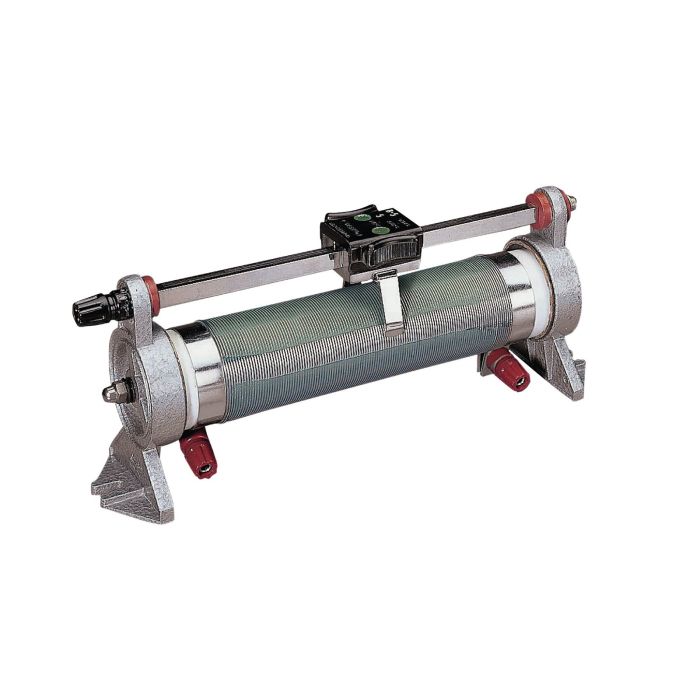

We supply a comprehensive range of rheostats offering excellent value for money. They are wound with heavily oxidised resistance wire on a vitreous enamelled tube with the winding secured in place with a ceramic cement. The tube is supported on robust diecast end stands and the heavy duty sliding contact is of the multi-leaf phosphor bronze type, nickel-plated for corrosion resistance. 4mm terminal posts are fitted, facilitating external connection by conventional 4mm plug leads, spade terminals or bare-ended leads.

Rheostat, Standard Range - 1.4A

Features:

Resistance: 135

Max Current 1.4A

Tube size: 200 x 43

Overall size: 250 x 100 x 65

Dimensions: 200 x 43
