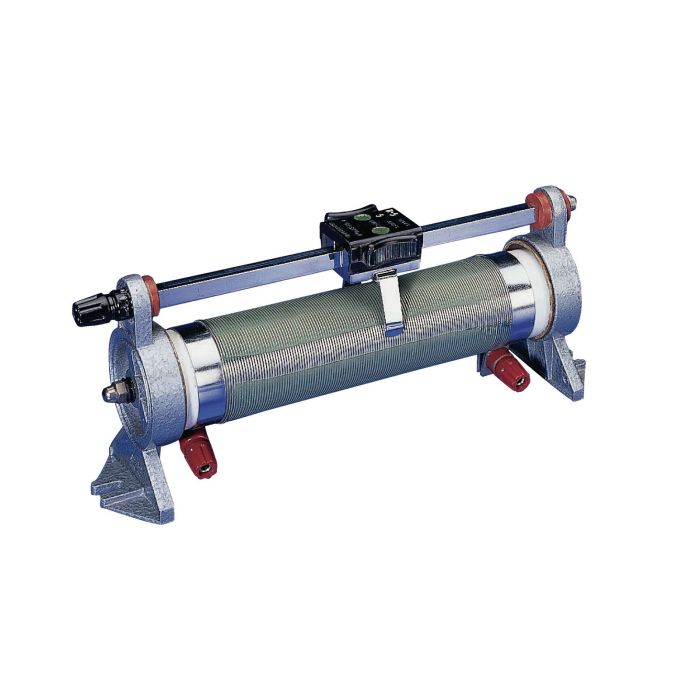

Rheostat Standard Range - 3.2A

We supply a comprehensive range of rheostats offering excellent value for money. They are wound with heavily oxidised resistance wire on a vitreous enamelled tube with the winding secured in place with a ceramic cement. The tube is supported on robust diecast end stands and the heavy duty sliding contact is of the multi-leaf phosphor bronze type, nickel-plated for corrosion resistance. 4mm terminal posts are fitted, facilitating external connection by conventional 4mm plug leads, spade terminals or bare-ended leads.

Rheostat, Standard Range - 3.A

Features:

Resistance: 37

Max Current 3.2A

Tube size: 300 x 43

Overall size: 355 x 100 x 63

Dimensions: 300 x 43
