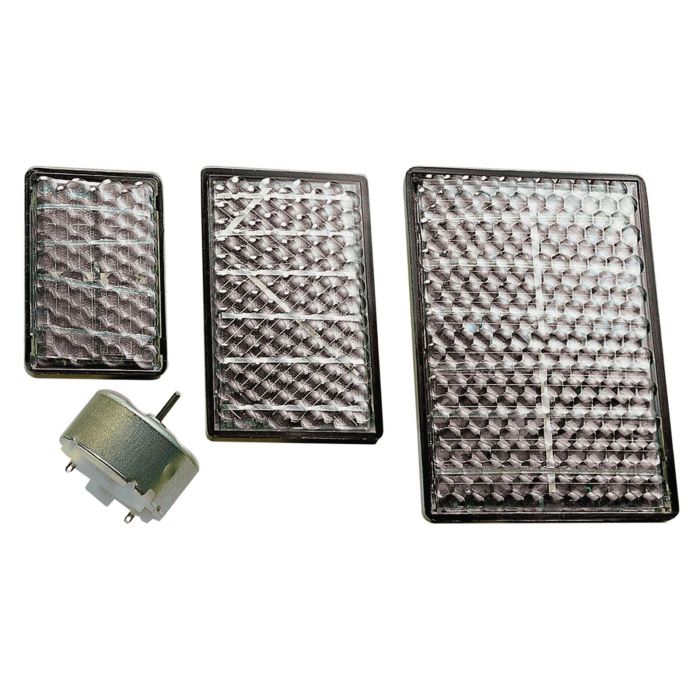

Solar Motor

Precision low inertia motor with very low starting current, ideal for low power applications

including solar cells and modules.

Rotation is clockwise as viewed from shaft end.

Disc varistor incorporated for EMC noise reduction. 24.3mm Dia. x 12.8mm high. Shaft length 6.0 x 2.0 dia.

Weight 20g approx. 120mm wire leads. Nominal voltage: 2.0V. No load speed: 2,300 RPM. No load current: 0.016A. Speed at max. efficiency: 1,760 RPM. Current at max. efficiency: 0.052A. Torque: 5.4g-cm.

Stall torque: 10.7g-cm min.
