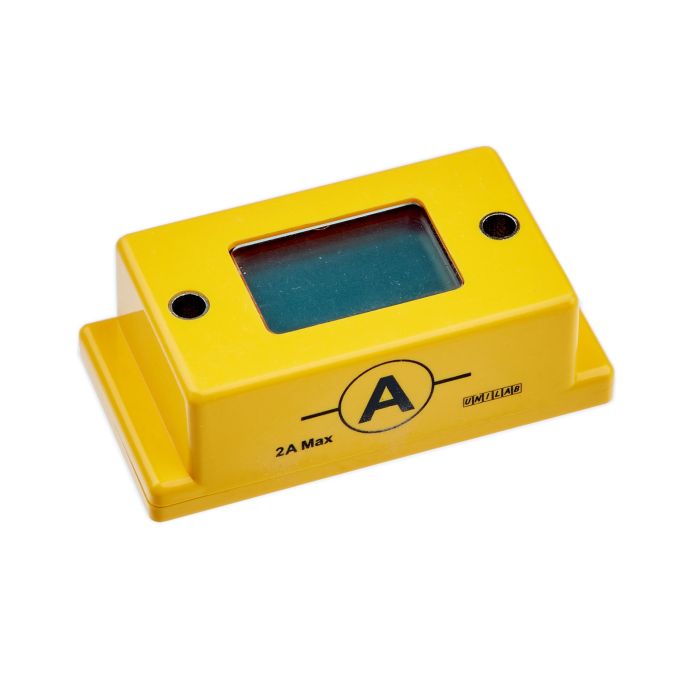

Unilab BEK - Ammeter

The Unilab BEK Ammeter is new addition to the Unilab Basic Electricity Kit. This simple, miniature, Ammeter is an ideal way

to make current measurements in electrical circuits. If the maximum current of 2A is exceeded, the Ammeter will automatically limit the current to 0.5A (Typ) and will reset automatically when the short circuit is removed.

Specification:

Resolution 10 mA

Accuracy ±2%

Input impedance 300 mΩ

Connectors 4mm

Battery life 300 hours (Typ)

Battery 2 X AG13

Maximum current 2A dc
