Young's Modulus Apparatus

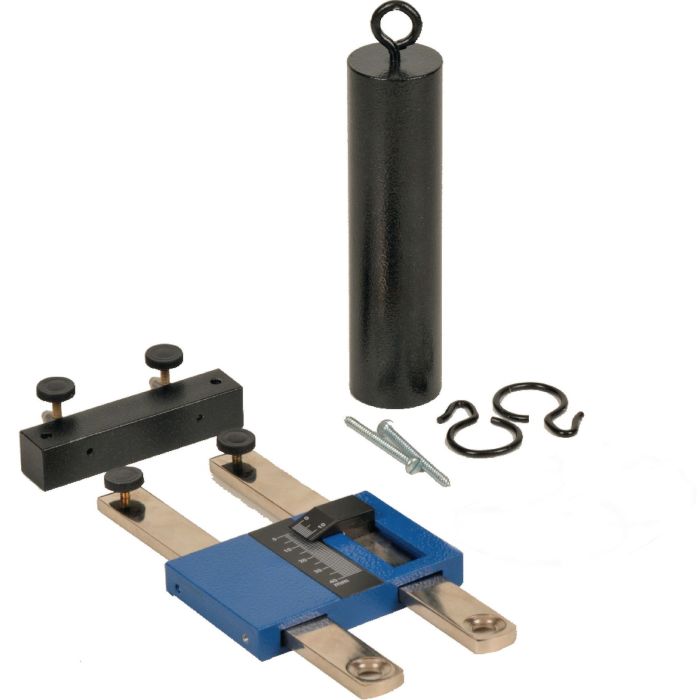

Comprises a scale plate carrying a 0 to 30mm scale, and a moveable vernier readable to 0.1mm. Both have bars with clamping screws for the wires and hooks for the tension weight and loading masses. A ceiling clamp is provided for the upper ends of the wires, together with a pair of large woodscrews for attaching it to a convenient overhead beam, door frame etc.

A tension weight, mass 1.3kg approx, for the comparison wire is also included.

Supplied WITHOUT load masses or wires.
