Axial and Lateral Search Coil

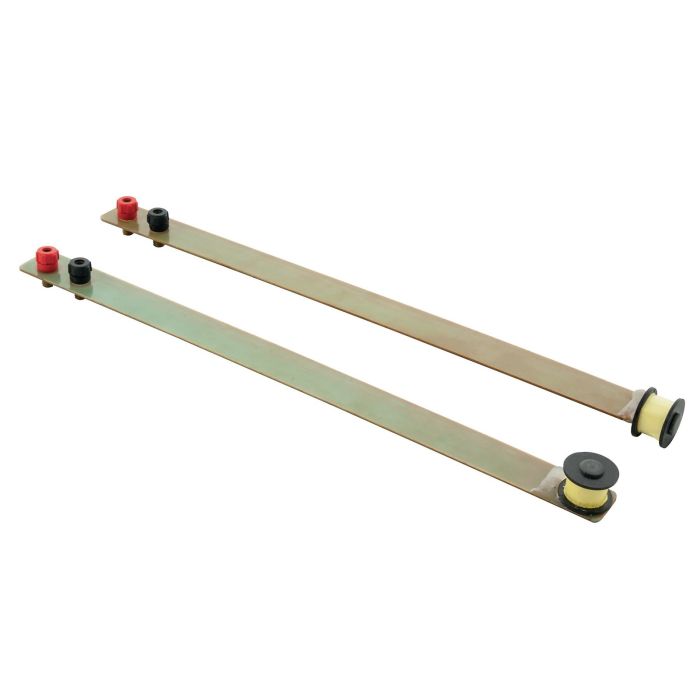

The Search Coil consists of 5000 turns of very fine copper wire on a bobbin fixed at one end of fibreglass board (Electrically insulated and non magnetic) and on the other end two 4 mm socket terminals are fitted. It can be used to determine field strengths or flux density inside the air gap of magnets or solenoids. A DC or AC signal can be applied to the search coils to study the effect of interacting magnetic fields. The Axial coil has the coil mounted with its axis parallel to the axis of the PCB board. The Lateral coil has the coil mounted with its axis at 90 degrees to the axis of the PCB board.

The coils are available to order separately:

Lateral Search Coil - B8R07038

Axial Search Coil - B8R07037
