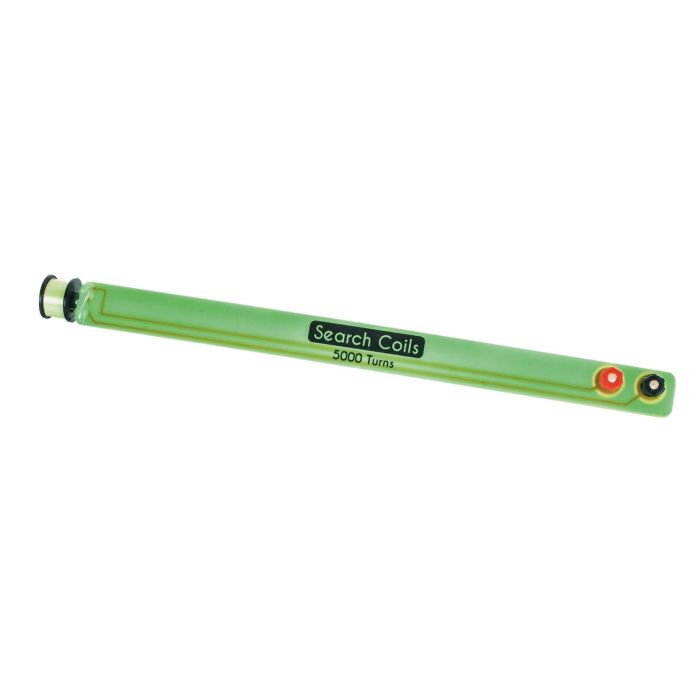

Axial Search Coil

The Search Coil consists of 5000 turns of very fine copper wire on a bobbin fixed at one end of fibreglass board (Electrically insulated and non magnetic) and on the other end two 4 mm socket terminals are fitted. It can be used to determine field strengths or flux density inside the air gap of magnets or solenoids. A DC or AC signal can be applied to the search coils to study the effect of interacting magnetic fields. Coil mounted with its axis parallel to the axis of the PCB board.
