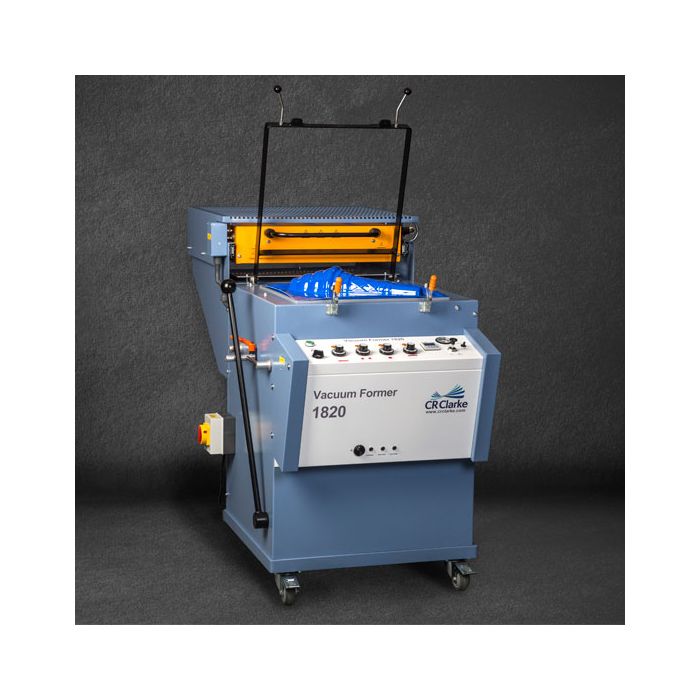

CR Clarke Vacuum Former Model 1820

Features include:
• Maximum forming aperture: 432 x 482mm
• Sheet size: 458 x 508mm
• Maximum material thickness: 6-8mm
• Maximum mould height: 280mm
• 4 individual heat zones
• Heat resistant moulded RTV silicone seals
• Inverse wiring system gives precise control of heat emission
• Roll feed & timer controlled fans
• Blow release
• Mechanical interlock prevents moulds damaging heaters

Specifications:
• Voltage: 220-240V, 50-60Hz
• Motor: 1ph (230V), 4kW
• Heater: 230/115V, 4kW
• maximum current: 12.26-14.16A
• Platen stroke: 305mm
• Vacuum pulling capacity (typical): 635mm Hg (0.83 bar)
• Dimensions: 1,160 x 840 x 1,420mm (H x W x D)
• Weight: 174kg
• Supplied with a single phase plug as standard. Please call if you'd prefer a three phase option
