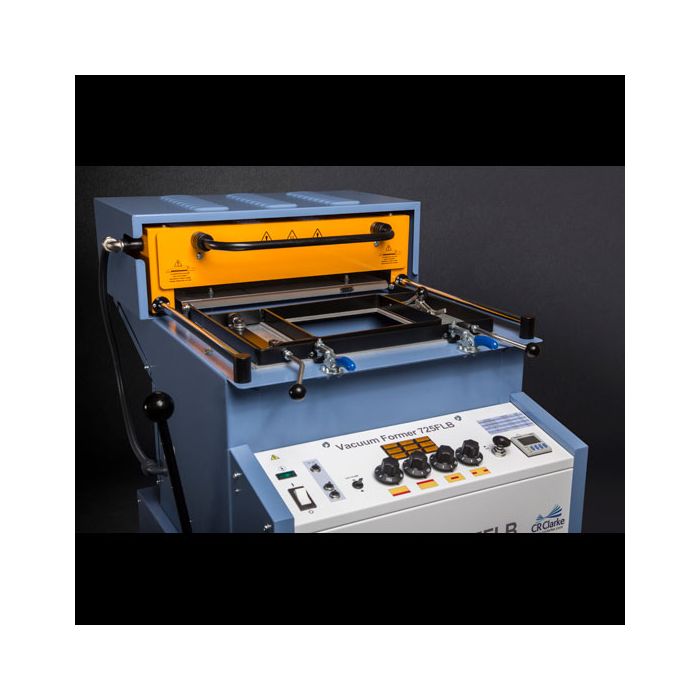

CR Clarke Vacuum Former Model 725FLB

Sensibly priced machine making it ideal for educational workshops. Produces quality formings in 254 x 458mm (half standard sheet size).

Features include:
• Maximum forming aperture: 228 x 432mm
• Sheet size: 254 x 458mm
• Maximum material thickness: 6mm
• Maximum mould height: 140mm
• 4 zone ceramic heater system with heater mode display
• Heat resistant moulded RTV silicone seals
• Blow release facility to release the formings from the moulds
• Digital timer with alarm
• Mechanical interlock prevents tall moulds damaging the heaters
• Header hood mounted on slide bars with nylon bushes for smooth operation
• Stand available

Specifications:
• Voltage: 230V, 50-60Hz
• Motor: 1ph (230V), 1.93kW
• Heater: 230/115V, 1.93kW
• Maximum current: 7.7A
• Platen stroke: 152mm
• Vacuum pulling capacity (typical): 635mm Hg (0.86 bar)
• Dimensions: 635 x 914 x 584mm (W x D x H)
• Weight: 62kg
•* Supplied with a single phase plug as standard

Please call if you'd prefer a three phase option.
