Faraday's Law

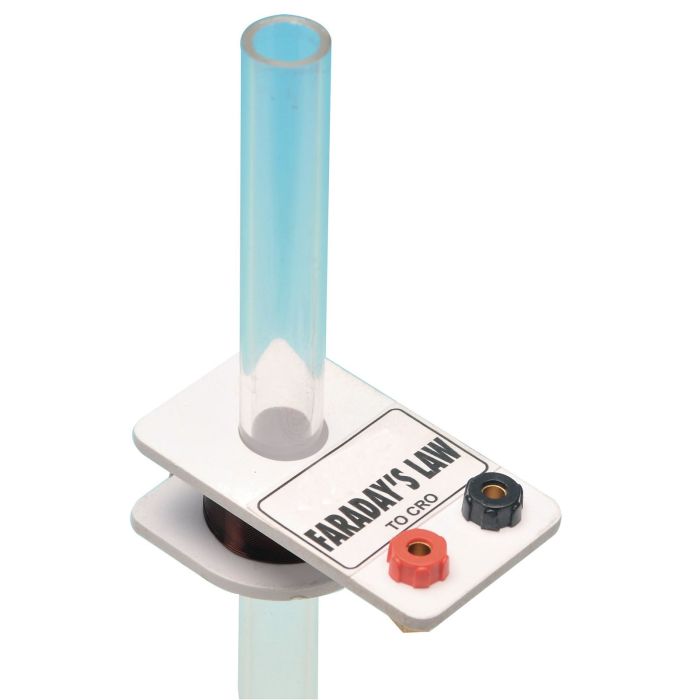

An assembly supports a coil so that it can be easily slide up and down a support tube and locked in position. When a small cylinderical magnet (supplied) is dropped down the tube, the resultant induced EMF can be monitored with an oscillioscope or data-logger. The amplitude varies with speed and this provides the basis for a student investigation into the relationship between distance fallen by the magnet and the output amplitude. At post-16, equations of motion can be used to determine the speed and if a PC storage oscillioscope is available, there is scope for investigation of output characteristics.

Size: H50 x 60 x L380mm
