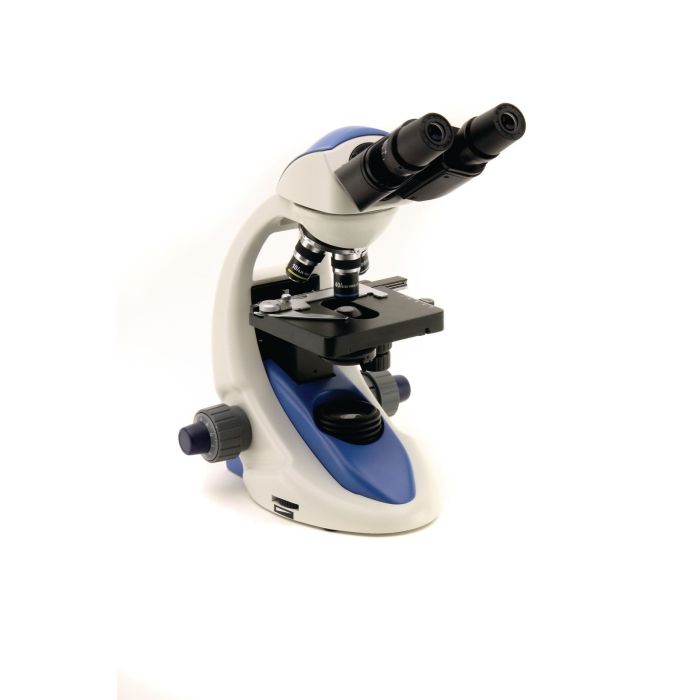

Optika B-192 Binocular Microscope LED 1000x

An advanced instrument, capable of up to 1000x magnification, with a modern finish and robust build. Perfect for use in examination assessed work and advanced level education.

Full Specification:

• Total magnification: 40x, 100x, 400x, 1000x

• Eyepieces: Wide field WF10x/18

• Head: Binocular, 360° rotating, with 30° inclined eyepiece tube. Diopter adjustment on left eyepiece. Interpupillary adjustment 48-75mm

• Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.

• Objectives: Anti-fungal treated Achromatic (DIN) objectives with mechanical tube length 160mm

? 4x, A.N. 0.10, W.D. 18mm

? 10x, A.N. 0.25, W.D. 7mm

? 40x, A.N. 0.65, W.D. 0.53mm

? 100x, A.N. 1.25, W.D. 0.13mm (oil immersion)

• Stage: Double layer with mechanical sliding stage with specimen holder, 125 x 115mm. X-Y movement range 76 x 30mm. Vernier scale on the two axes, accuracy 0.1mm

• Focussing: Coaxial coarse and fine focusing mechanism (graduated 0.002mm) with upper stop. Adjustable tension of coarse focussing knob

• Condenser: Abbe condenser, N.A. 1.25 pre-centred

• Illumination: 3W X-LED with adjustable intensity

• LED Details: 3W, 6300K colour temperature, average life time approx. 50000h

• Observation Mode: Brightfield

• Dimensions: H370 x W235 x D290mm

• Weight: 6.5kg

• Voltage: External power supply 100/240V, 50/60Hz, output 7.5V. Max. power required 7W

• Accessories included: Power supply, dust cover and instructions
