Shunts for Basic Student and Centre-Zero Meters - 0 to 100mA d.c.

Shunts for Basic Student and Centre-Zero Meters - 50A/ 100mA d.c.

One of a set of shunts and multipliers developed to withstand overloads resulting from common student errors. Tough Shunts cover the ranges of voltage and current commonly required in practical work.

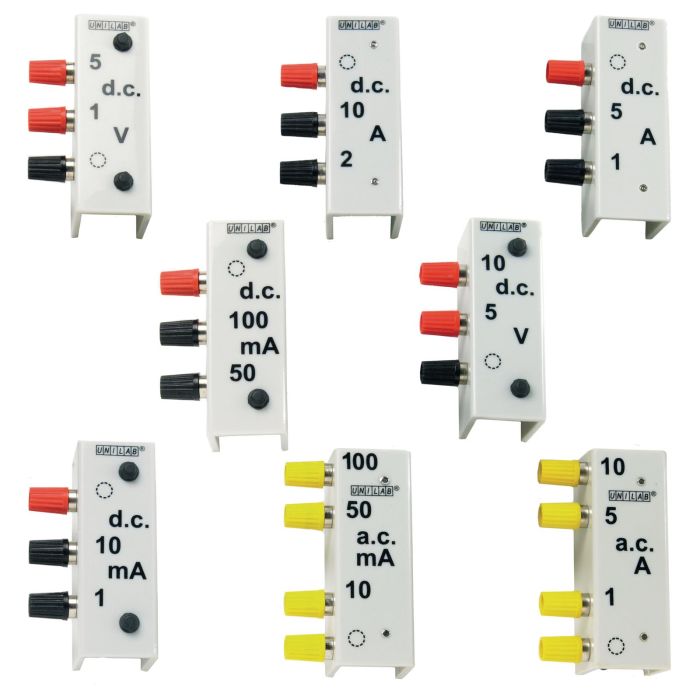

• d.c. Ammeter Attachments: these units consist of suitable resistor networks mounted in a grey component channel fitted with three 4mm terminals as a common positive with two ranges.

• d.c. Voltmeter Attachments: similar to the d.c. ammeter attachments described above except that the two resistor networks are arranged to have a common negative terminal.

• a.c. Voltmeter and Ammeter Attachments: similar to their d.c. equivalents except that appropriate rectifying or transformer circuits are included designed for 50/60Hz circuits.
