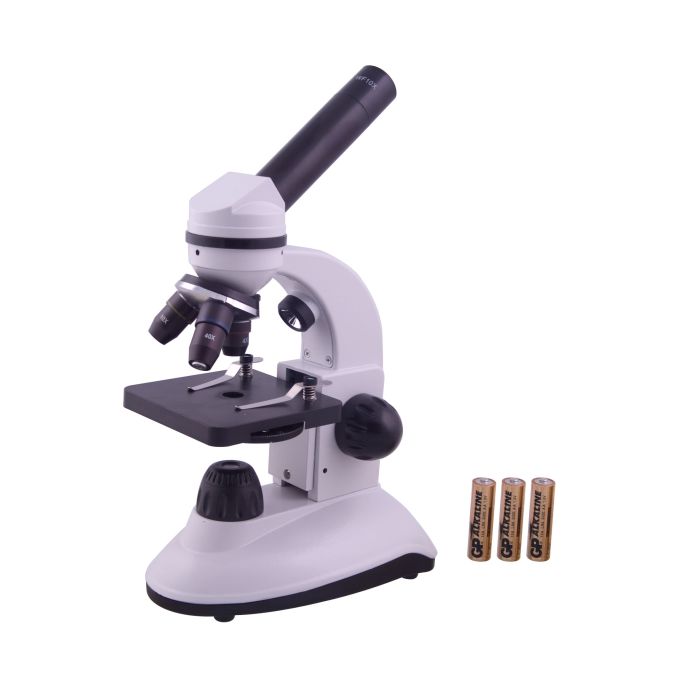

BMS 036 Basic LED Microscope

This basic compound microscope is suitable for basic microscopy and beginners. It offers enhanced LED illumination, combining the advantages of an incident light (specimen is lit from above), and a transmission light (lit from underneath to enable light to pass through the specimen) - both lights can be operated separately. This microscope has a 10x wide field eye piece mounted at a 45 degree angle for comfort. The triple nosepiece features 4x, 10x, 40x objectives with a total magnification of 400x. The fixed condenser N.A. 0,65 is provided with a six aperture disc diaphragm to adjust the amount of light coming through the specimen slide. The most components such as the stand are made of sturdy plastic.

Specifications:

• Eyepiece: WF 10x/18 mm
• Tube: 45º inclined
• Head: monocular, fixed
• Focussing: coarse focussing knobs
• Nosepiece: triple
• Objectives: DIN achromatic 4x, 10x and 40x
• Stage: with 2 stage clips
• Disc diaphragm: six aperture disc diaphragm
• Illumination: 1 LED incident and 1 LED transmitted light; incident light only suitable for the 4x and 10x objective
• Total magnification: 40x, 100x and 400x
• Powered by: 3 AA batteries
• Package dimension: 21 x 16 x 35 cm
• Mass: 1.1 kg

Includes dust cover, manual and batteries (3x AA batteries)
