Mobile Bench 01 - 2 Fret Saws and Extractors

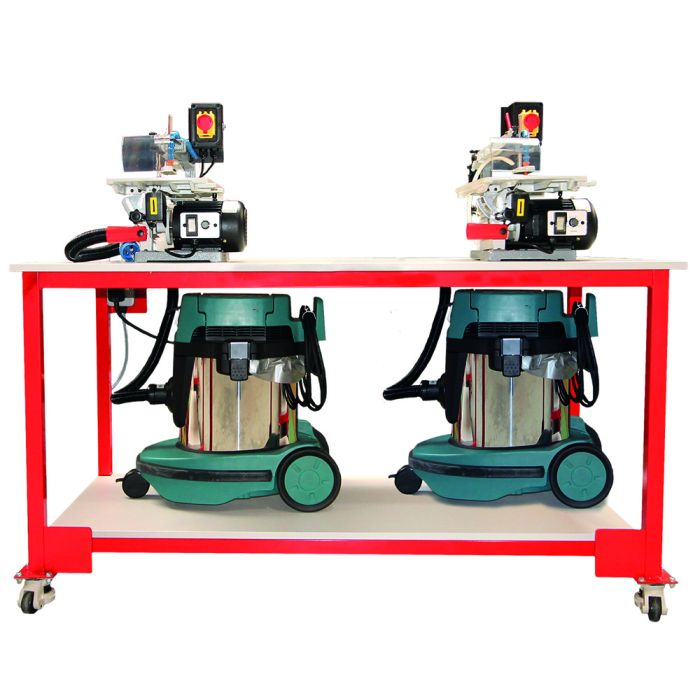

The Flamefast Mobile Bench OPTION 1 consists of two educational compliant Fretsaws and one HSG250 compliant extractor unit. The bench is a heavy duty mobile workbench fitted with swivel casters that incorporate a safety wind down rubber foot which acts as a locking mechanism. The frame is made up of 40mm steel box section. Equipment comes pre-wired and interlocked to extraction.

All Mobile Benches are supplied fully assembled ready to plug into a single phase 16 amp Commando type socket controlled by a lockable isolator switch.

Included: Flamefast Mobile Bench, Fretsaws x2, Extractor M x2.

Specifications:

Mobile Bench:

Size ( L x W x H) - 1500 x 750 x 850 mm
Table Top Size - 1500 x 800 x 20 mm (70 with frame)
Net Weight - 60kg

FretSaw / Scroll Saw:

Size ( L x W x H) - 620 x 285 x 310 mm
Weight - 29 kg
Motor Power - 120 W
Table Size - 460 x 235 mm
Table Tilt - 0 - 45°
Max Depth of Cut - 65mm
Cuts per min - 400-1400(var)
Stroke Length - 10 & 20mm
Throat Depth - 460mm
Voltage - 230V
Plug Fitted - UK 3 pin
Max Depth of cut @ 90° - 65mm
Dust Extraction Outlet - 40mm

Extractor M

Power take off wattage(240V) - 2000W
Max Airflow - 3.6m3/min
Dust Bag Capacity - 28 Litres
Max Sealed Suction - 21.0kPa
Tank Capacity - 30 Litres (23 Litres Wet)
Noise sound pressure - 72dB(A)
Hose Length - 3.5m
Hose Diameter - 32mm
Input Wattage - 1000W
Net Weight - 11kg

Additional height required for the tallest tool: 575mm.

Overall weight: 100kg.
