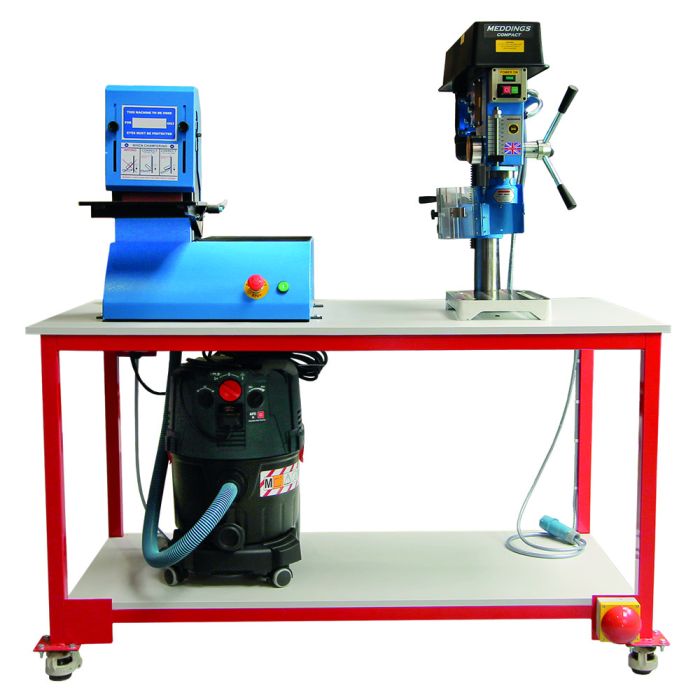

Mobile Bench 02 - Drill Bandfacer and Extractor

The Flamefast Mobile Bench OPTION 2 consists of one educational compliant Bench Drill and Bandfacer along with one HSG250 compliant extractor unit. The bench is a heavy duty mobile workbench fitted with swivel casters that incorporate a safety wind down rubber foot which acts as a locking mechanism. The frame is made up of 40mm steel box section. Equipment comes pre-wired and interlocked to extraction.

All Mobile Benches are supplied fully assembled ready to plug into a single phase 16 amp Commando type socket controlled by a lockable isolator switch.

Included: Flamefast Mobile Bench x 1, Bandfacer x1, Bench Drill x1, Extractor B x1, Stop Button x1. Bench size: L x W x H: 1500 x 750 x 850mm. Additional height required for the tallest tool: 815mm. Overall weight: 214kg.

Specifications:

Mobile Bench:

Size ( L x W x H) - 1500 x 750 x 850 mm
Table Top Size - 1500 x 800 x 20 mm (70 with frame)
Net Weight - 60kg

Bench Drill:

Size (H x W x D) - 815 x 372 x 627 mm
Weight - 46kg
Drilling capacity (mild steel) - 16mm
Motor - kW0.37 1ph
Spindle - 2MT
Spindle Speeds rpm 50Hz - Belt, stepped pulleys
Spindle Travel - 100mm
Throat Depth - 194mm
Column Diameter - 70mm
Base - overall - 235 x 409mm
Base - working surface - 235 x 295mm
Max distance chuck to base - 294mm

Bandsaw:

Worktable Size (W x D) - 278 x 226mm
Belt Size (WxL) - 150 x 1090mm
Belt Speed - 1500rpm
Motor - 3 Phase = 1.5 kw / 1 Phase = 0.75 kw
Electrical Supply - 400V/3ph/50Hz or 230V/1ph/50Hz
Weight - 97kg

Extractor B:

Rated Input Power - 1200W
Container Volume - 35 L (gross) / 23 L (net) / 19.2 L (water net)
Dust Class - M
Tool Dimension (W x L x H) - 375 x 515 x 575 mm
Filter Surface area - 6150 cm2
Max Airflow Rate (turbine) - 74 l/s
Max Vacuum Pressure (turbine) - 254mbar
Voltage, electrical - 240V
