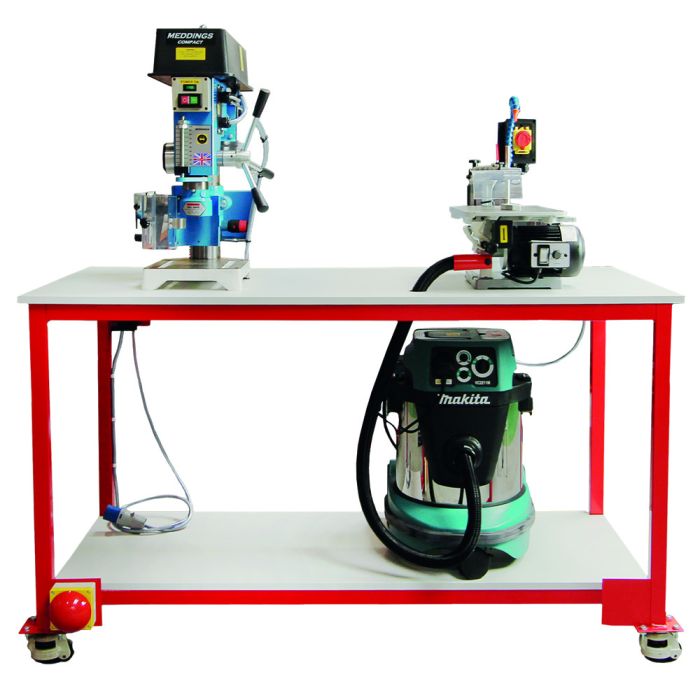

Mobile Bench 04 - Drill, Fret Saw and Extractor

The Flamefast Mobile Bench OPTION 4 consists of one educational compliant Bench Drill and Fretsaw along with one HSG250 compliant extractor unit.The bench is a heavy duty mobile workbench fitted with casters that incorporate a safety wind down rubber foot which acts as a locking mechanism. The frame is made up of 40mm steel box section. Equipment comes pre-wired and interlocked to extraction.

All Mobile Benches are supplied fully assembled ready to plug into a single phase 16 amp Commando type socket controlled by a lockable isolator switch.

Included: Flamefast Mobile Bench x1, Drill x1, Fretsaw x1, Extractor M x1.

Bench size: L x W x H: 1500 x 750 x 850mm. Additional height required for the tallest tool: 815mm. Overall weight: 146kg.

Specifications

Mobile Bench:

Size ( L x W x H) - 1500 x 750 x 850mm
Table Top Size - 1500 x 800 x 20 mm (70 with frame)
Net Weight - 60kg

FretSaw / Scroll Saw:

Size ( L x W x H) - 620 x 285 x 310mm
Weight - 29kg
Motor Power - 120W
Table Size & Tilt - 460 x 235mm / 0 - 45°
Max Depth of Cut - 65mm
Cuts per min - 400-1400(var)
Stroke Length - 10 & 20 mm
Throat Depth - 460mm
Voltage - 230V
Plug Fitted - UK 3 pin
Max Depth of cut @ 90° - 65mm
Dust Extraction Outlet - 40mm

Bench Drill:

Size (H x W x D) - 815 x 372 x 627mm
Weight - 46kg
Drilling capacity (mild steel) - 16mm
Motor - kW0.37 1ph
Spindle - 2MT
Spindle Speeds rpm 50Hz - Belt, stepped pulleys
Spindle Travel - 100mm
Throat Depth - 194mm
Column Diameter - 70mm
Base - overall - 235 x 409mm
Base - working surface - 235 x 295mm
Max distance chuck to base - 294mm

Extractor M

Power take off wattage(240V) - 2000W
Max Airflow - 3.6m3/min
Dust Bag Capacity - 28 Litres
Max Sealed Suction - 21.0kPa
Tank Capacity - 30 Litres (23 Litres Wet)
Noise sound pressure - 72 dB(A)
Hose Length - 3.5m
Hose Diameter - 32mm
Input Wattage - 1000W
Net Weight - 11kg
