Mobile Bench 05 - Metal Lathe and Cabinet

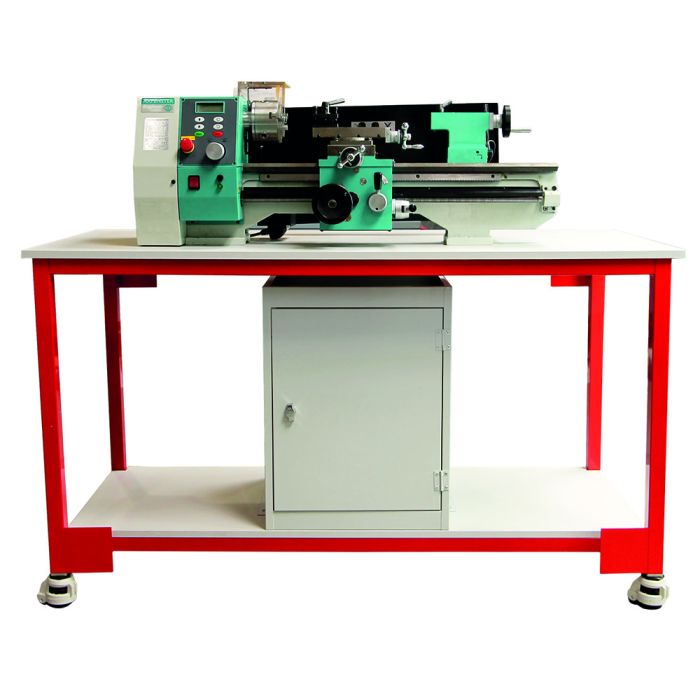

The Flamefast Mobile Bench OPTION 5 consists of one educational compliant Metal Lathe along with a cabinet. The bench is a heavy duty mobile workbench fitted with casters that incorporate a safety wind down rubber foot which acts as a locking mechanism. The frame is made up of 40mm steel box section. Equipment comes pre-wired and interlocked to extraction.

All Mobile Benches are supplied fully assembled ready to plug into a single phase 16 amp Commando type socket controlled by a lockable isolator switch.

Included: Flamefast Mobile Bench x1, Metal Lathe x1, Cabinet x1. Bench size: L x W x H: 1500 x 750 x 850mm. Additional height required for the tallest tool: 400mm. Overall weight: 205kg.

Specifications:

Mobile Bench:

Size ( L x W x H)- 1500 x 750 x 850mm
Table Top Size - 1500 x 800 x 20 mm (70 with frame)
Net Weight (table only) - 60kg

Metal Lathe:

Size ( L x W x H) - 1000 x 550 x 400mm
Weight - 125kg
Centre Height - 105mm
Chuck Fitting - Flanged Mounted
Cross Slide Travel - 100mm
Headstock Taper - 3MT
Leadscrew Pitch - 2mm
Max Diameter over Bed - 210mm
Voltage - 230V
Plug Fitted - UK 3 pin
Power - 1.0kW
Rating - Engineer
Spindle Bore - 20mm
Spindle Speed - 100 - 2,000 rpm
Tailstock Taper - 2MT
Thread Pitch Range - 0.25 - 3.0 mm / 8 tpi - 24 tpi
Tool Shank Size - 10mm
Top Slide Travel - 70mm

Cabinet:

Width - 475mm
Height - 650mm
Depth - 455mm
