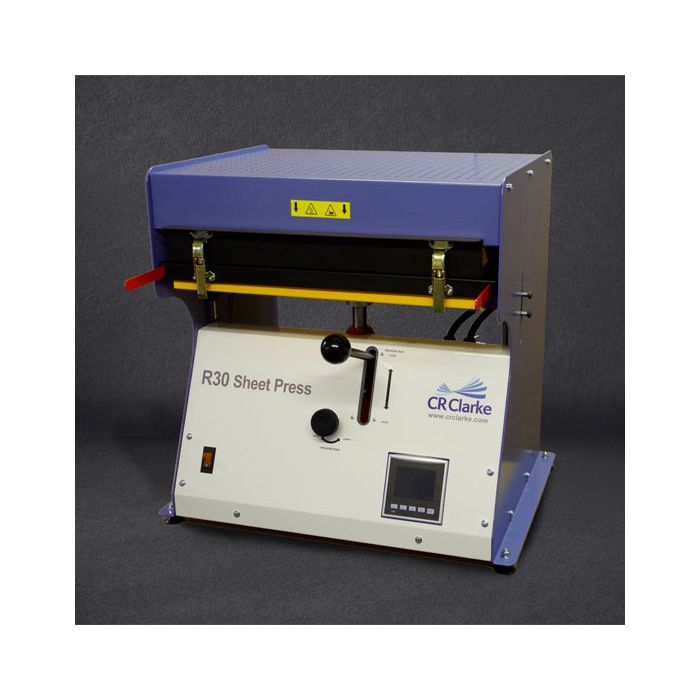

CR Clarke Sheet Press Model R30

Sheet press which forms plastic sheets in conjunction with the Granulator system above. Converts granulated thermoplastic material into a usable form using heat and pressure. The finished sheet is not as homogenised as, for example, a commercially moulded part, but is perfect for low-stress applications. The R30 press can form sheets up to 458 x 305mm in size. One frame is supplied with the machine to make a sheet 458 x 245mm.
• Heat press dimensions: 510 x 690 x 620mm
• Motor: 1ph (240V), 8A
• Weight: 92kg
• Supplied with a single phase plug as standard. Please call if you'd prefer a three phase option

Applications for commonly re-formed plastic sheets.
HDPE*/LDPE* (milk bottles):
• Can be cut using a bandsaw, vibrating saw or laser cutter
• Can be folded using a strip heater
• Can be injection moulded

HIPS (vacuum forming sheets):
• Can be cut using a bandsaw or vibrating saw
• Can be vacuum formed
• Can be folded using a strip heater

Acrylic:
• Can be cut using a bandsaw, vibrating saw or laser cutter
• Can be folded using a strip heater

*When using liquid containers, washing processes must be carried out to ensure hygienic operation.

This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
