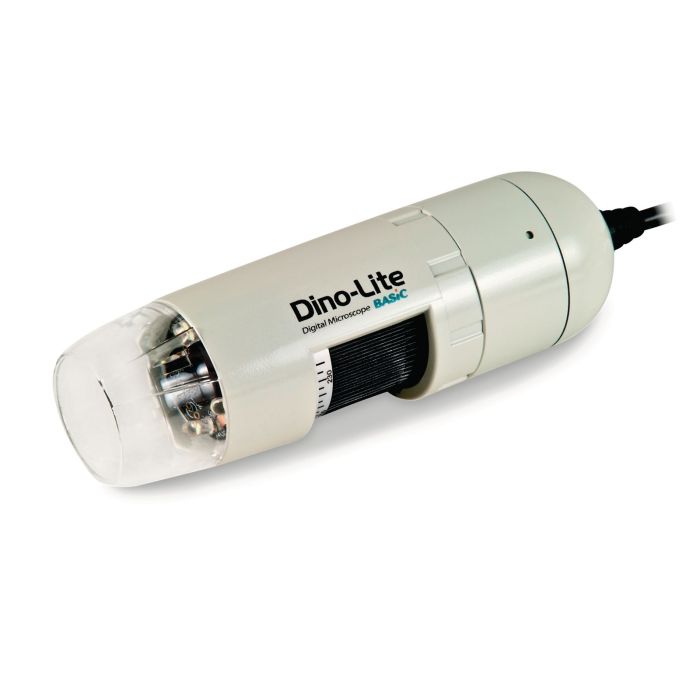

Dino-Lite AM2111 Basic USB Microscope

The AM2111 Dino-Lite Basic is the entry level Dino-Lite USB microscope and offers VGA resolution imaging (640 x 480) at 10x~60x and 200x magnification. The AM2111 is essentially the same as its predecessor, the AM2011, with the added benefit of an integral USB cable strain relief. The AM2111 model has also undergone a minor cosmetic re-design. As with all previous versions of this model the AM2111 is equipped with a high-speed USB 2.0 interface and provides 4 x white LED illumination (always on).

ADDITIONAL INFO

Resolution: 640x480pixels (VGA)

Magnification:10x ~ 60x, 200x

Working Distance: Standard

Interface: USB 2.0

Nr. of LEDs: 4

LED on/off switchable: No

LED color: White

Material: Composite

Exchangeable caps: No

Microtouch: No

Scroll lock: No

Output:Picture, Video, Time-lapsed video

Video Frame Rate :Up to 30 frames-per-second

Measurement: No

Calibration: No

Filter/Diffuser: None

Compatibility: Windows XP upto Windows 8, MacOS 10.4 +

Software: DinoCapture for Windows, DinoXcope for MacOS

JPEG Codec: None

Special: The AM2111 is the latest version of the AM2011, AM211 and AM311 models.

Field of View:

M WD FOV (x) FOV (y)

20 51.7 21.0 15.7

30 24.1 14.0 10.5

40 11.0 10.5 7.9

50 3.8 8.4 6.3

60 -0.6 7.0 5.2

200 -0.4 2.1 1.6

210 0.6 2.0 1.5

220 1.7 1.9 1.4

230 2.8 1.8 1.4

(M = magnification rate, WD = working distance, FOV = field of view, Unit = mm)
